Getting started with MOFA-FLEX

MOFA-FLEX is a framework for factor analysis of multimodal data, with a focus on single-cell omics, representing an observed data matrix \(\mat{Y}\) as a product of a low-rank factor matrix \(\mat{Z}\) and a low-rank weight matrix \(\mat{W}\): \(\mat{Y} \approx \mat{Z} \mat{W}\). It is essentially a synthesis of MOFA[AAB+20, AVA+18], MEFISTO[VBA+22], MuVI[QB23], nonnegative matrix factorization, and NSF[TE23]. It natively supports MuData and AnnData objects, integrating into the wider scverse ecosystem.

For this notebook, we will use the pbmc3k dataset by 10x Genomics, conveniently packaged in the mudatasets package. The dataset contains 10 000 single cells profiled with the 10x multiome assay, capturing gene expression (scRNAseq) and chromatin accessibility (scATACseq).

import mudata as md
import mudatasets as mds
import muon as mu
import mofaflex as mfl
import scanpy as sc
from plotnine import *

Importing the dtw module. When using in academic works please cite:
  T. Giorgino. Computing and Visualizing Dynamic Time Warping Alignments in R: The dtw Package.
  J. Stat. Soft., doi:10.18637/jss.v031.i07.

theme_set(theme_bw())
md.set_options(display_style="html", display_html_expand=0);

import warnings

warnings.filterwarnings("ignore", category=FutureWarning)

mdata = mds.load("pbmc3k_multiome")

■ File filtered_feature_bc_matrix.h5 from pbmc3k_multiome has been found at /home/kats/mudatasets/pbmc3k_multiome/filtered_feature_bc_matrix.h5
■ Checksum is validated (md5) for filtered_feature_bc_matrix.h5
■ Loading filtered_feature_bc_matrix.h5...
Added `interval` annotation for features from /home/kats/mudatasets/pbmc3k_multiome/filtered_feature_bc_matrix.h5

mdata.var_names_make_unique()
mdata

MuData object 2711 obs × 134920 var in 2 modalities

Metadata

.obs0 elements

No metadata

Embeddings & mappings

.obsm2 elements

rna	bool	numpy.ndarray
atac	bool	numpy.ndarray

Distances

.obsp0 elements

No distances

rna

2711 × 36601

AnnData object 2711 obs × 36601 var

Matrix

.X

float32    scipy.sparse._csr.csr_matrix

Layers

.layers0 elements

No layers

Metadata

.obs0 elements

No metadata

Embeddings

.obsm0 elements

No embeddings

Distances

.obsp0 elements

No distances

Miscellaneous

.uns0 elements

No miscellaneous

atac

2711 × 98319

AnnData object 2711 obs × 98319 var

Matrix

.X

float32    scipy.sparse._csr.csr_matrix

Layers

.layers0 elements

No layers

Metadata

.obs0 elements

No metadata

Embeddings

.obsm0 elements

No embeddings

Distances

.obsp0 elements

No distances

Miscellaneous

.uns0 elements

No miscellaneous

Preprocessing

We first perform the basic preprocessing steps outlined in the muon tutorial to remove undetected genes and poor-quality cells.

rna = mdata["rna"]
rna.var["mt"] = rna.var_names.str.startswith("MT-")
sc.pp.calculate_qc_metrics(
    rna, qc_vars=["mt"], percent_top=None, log1p=False, inplace=True
)
mu.pp.filter_var(rna, "n_cells_by_counts", lambda x: x >= 3)
mu.pp.filter_obs(rna, "n_genes_by_counts", lambda x: (x >= 200) & (x < 5000))

mu.pp.filter_obs(rna, "total_counts", lambda x: x < 15000)
mu.pp.filter_obs(rna, "pct_counts_mt", lambda x: x < 20)

atac = mdata.mod["atac"]
sc.pp.calculate_qc_metrics(atac, percent_top=None, log1p=False, inplace=True)
mu.pp.filter_var(atac, "n_cells_by_counts", lambda x: x >= 10)
mu.pp.filter_obs(atac, "n_genes_by_counts", lambda x: (x >= 2000) & (x <= 15000))
mu.pp.filter_obs(atac, "total_counts", lambda x: (x >= 4000) & (x <= 40000))

We further normalize the data and determine highly variable genes. MOFA-FLEX will automatically use only the highly variable genes for the analysis.

sc.pp.normalize_total(rna, target_sum=1e4)
sc.pp.log1p(rna)
sc.pp.highly_variable_genes(rna, min_mean=0.02, max_mean=4, min_disp=0.5)

mu.atac.pp.tfidf(atac, scale_factor=1e4)
sc.pp.normalize_per_cell(atac, counts_per_cell_after=1e4)
sc.pp.log1p(atac)
sc.pp.highly_variable_genes(atac, min_mean=0.05, max_mean=1.5, min_disp=0.5)

mdata.update()

mdata

MuData object 2695 obs × 119335 var in 2 modalities

Metadata

.obs7 elements

rna:n_genes_by_counts	float64	2272.00,3254.00,1798.00,1145.00,1495.00,1342.00,25...
rna:total_counts	float32	4747.00,7761.00,3666.00,2162.00,2910.00,2616.00,66...
rna:total_counts_mt	float32	369.00,693.00,409.00,271.00,293.00,213.00,308.00,6...
rna:pct_counts_mt	float32	7.77,8.93,11.16,12.53,10.07,8.14,4.62,12.36,10.79,...
atac:n_genes_by_counts	float64	5415.00,9572.00,9459.00,6634.00,7107.00,7378.00,56...
atac:total_counts	float32	12757.00,23124.00,22912.00,17106.00,18400.00,18723...
atac:n_counts	float32	6129.60,10004.25,9936.28,6779.99,6849.25,7125.32,5...

Embeddings & mappings

.obsm2 elements

rna	bool	numpy.ndarray
atac	bool	numpy.ndarray

Distances

.obsp0 elements

No distances

rna

2636 × 21256

AnnData object 2636 obs × 21256 var

Matrix

.X

float32    scipy.sparse._csr.csr_matrix

Layers

.layers0 elements

No layers

Metadata

.obs4 elements

n_genes_by_counts	int32	2272,3254,1798,1145,1495,1342,2589,2385,3009,3320,...
total_counts	float32	4747.00,7761.00,3666.00,2162.00,2910.00,2616.00,66...
total_counts_mt	float32	369.00,693.00,409.00,271.00,293.00,213.00,308.00,6...
pct_counts_mt	float32	7.77,8.93,11.16,12.53,10.07,8.14,4.62,12.36,10.79,...

Embeddings

.obsm0 elements

No embeddings

Distances

.obsp0 elements

No distances

Miscellaneous

.uns2 elements

log1p	dict	1 element	base: None
hvg	dict	1 element	flavor: seurat

atac

2450 × 98079

AnnData object 2450 obs × 98079 var

Matrix

.X

float32    scipy.sparse._csr.csr_matrix

Layers

.layers0 elements

No layers

Metadata

.obs3 elements

n_genes_by_counts	int32	5415,9572,9459,6634,7107,7378,5654,5212,13768,1387...
total_counts	float32	12757.00,23124.00,22912.00,17106.00,18400.00,18723...
n_counts	float32	6129.60,10004.25,9936.28,6779.99,6849.25,7125.32,5...

Embeddings

.obsm0 elements

No embeddings

Distances

.obsp0 elements

No distances

Miscellaneous

.uns2 elements

log1p	dict	1 element	base: None
hvg	dict	1 element	flavor: seurat

Fitting a model

Creating a MOFAFLEX object automatically fits the model using the specified parameters. A basic understanding of the model is required to correctly set the parameters for a given dataset.

Since we have normalized the data in the previous section, we will use a Normal (Gaussian) likelihood. In general, a negative binomial likelihood is more appropriate for unnormalized count data. With default settings, MOFA-FLEX will plot the number of observations in each view and group. This can be turned off by customizing mofaflex.DataOptions. MOFA-FLEX will also automatically save the final model after training which can later be loaded with mofaflex.MOFAFLEX.load. The name of the saved file can be changed in mofaflex.TrainingOptions.

model = mfl.MOFAFLEX(
    mdata,
    mfl.ModelOptions(n_factors=15, likelihoods="Normal"),
    mfl.TrainingOptions(batch_size=1000, seed=42),
)

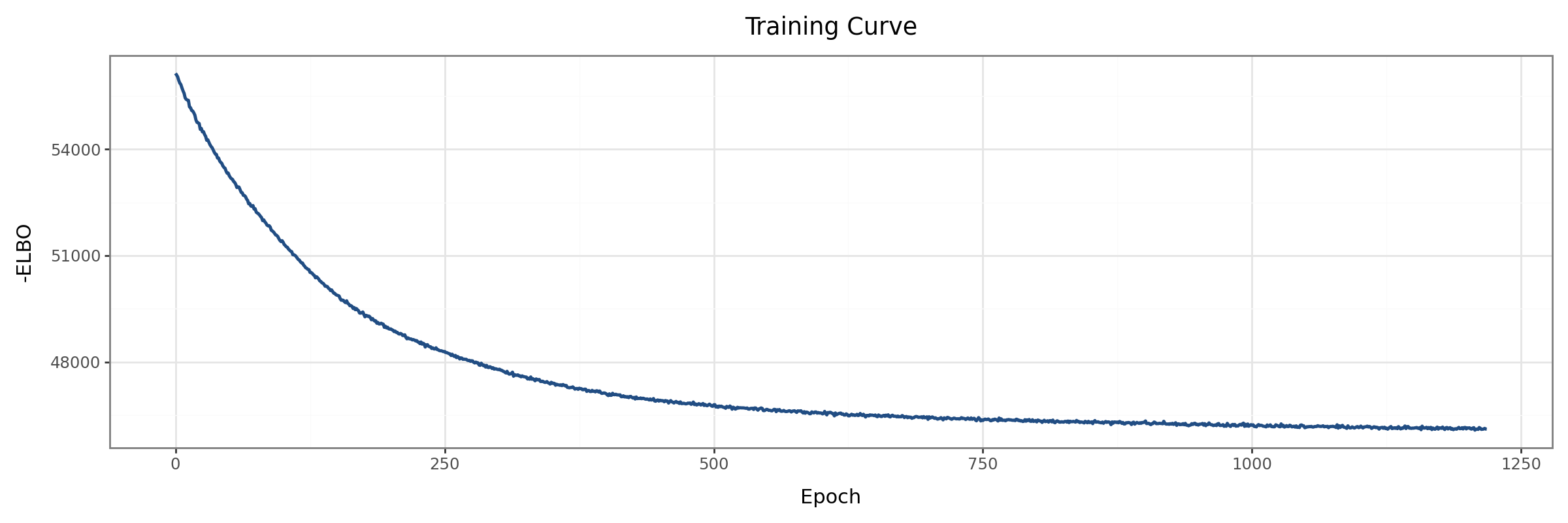

We can plot the loss curve to get an overview of the training process:

mfl.pl.training_curve(model)

Analysing the model

The trained model can now be analysed to assess its quality and discover relevant biology. First, we plot the correlations between factors, which should be as low as possible: We want factors to be uncorrelated, as each factor should capture a different aspect of the data.

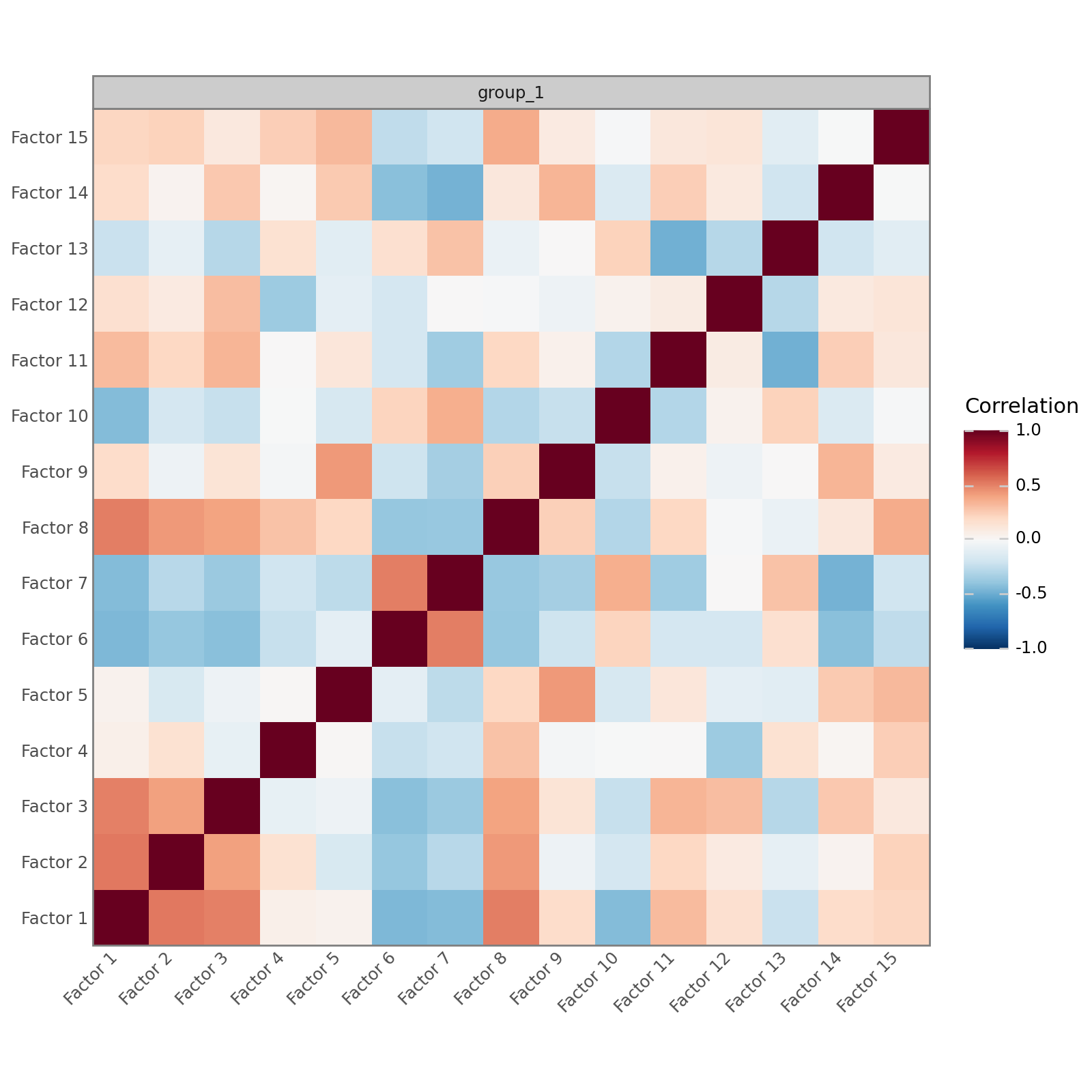

mfl.pl.factor_correlation(model)

This is not ideal, but good enough for a first look at the data. We can now plot the fraction of variance in the data explained by each factor to determine the most important factors. Note that for non-Normal likelihoods, these values are approximate.

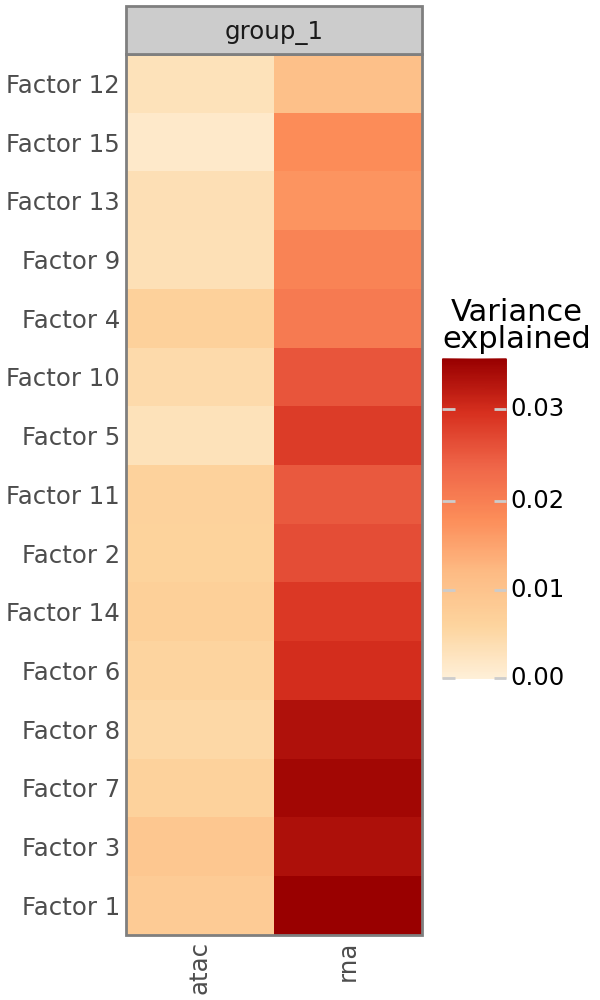

mfl.pl.variance_explained(model)

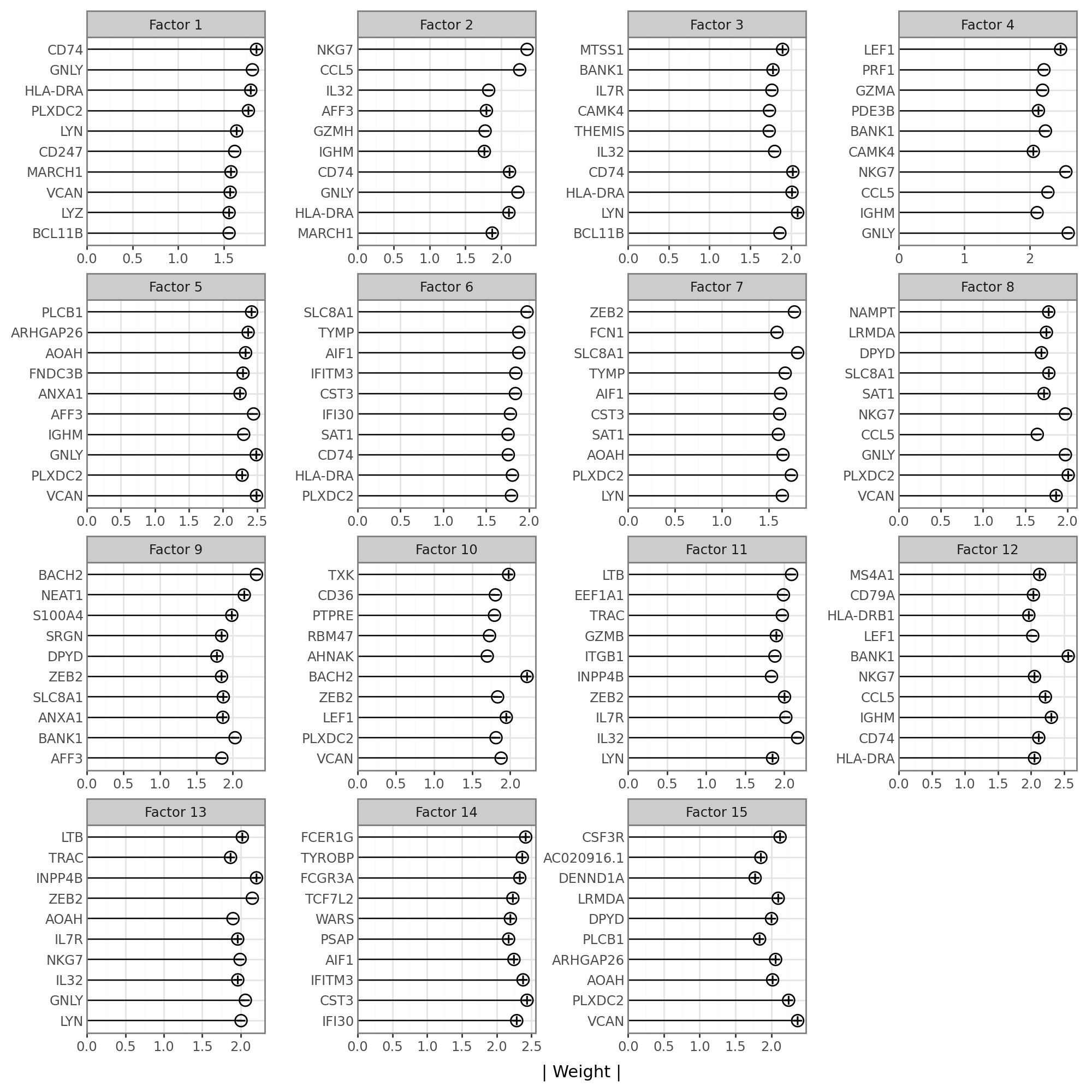

We can plot the most important genes per factor to get an idea of what each factor represents. This plot aggregates over all views.

mfl.pl.top_weights(model, figsize=(10, 10))

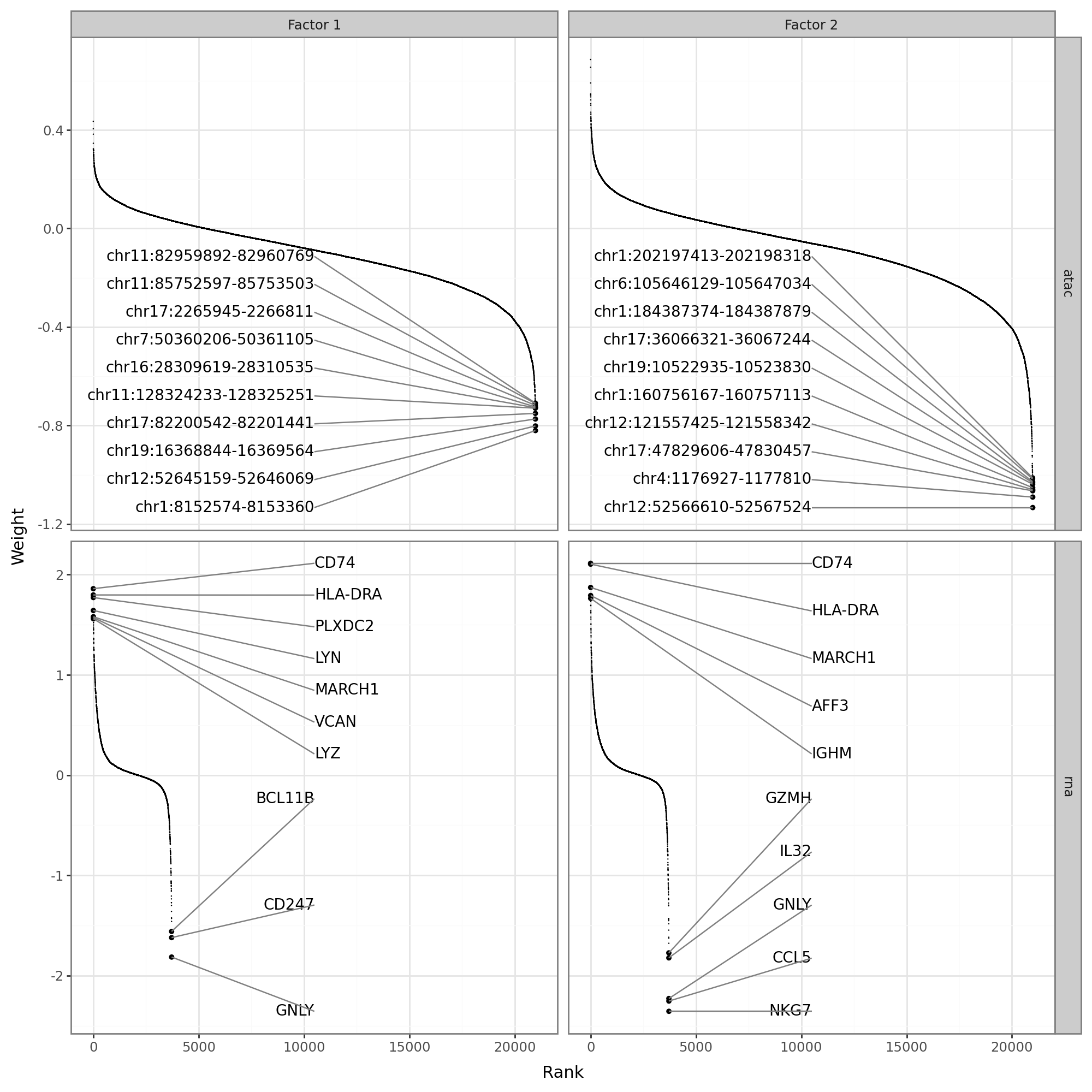

It appears that the most important features are all from the RNA dataset. We can use a different plotting function to get the top weights individually for each view.

mfl.pl.weights(model, factors=(1, 2), figsize=(10, 10))

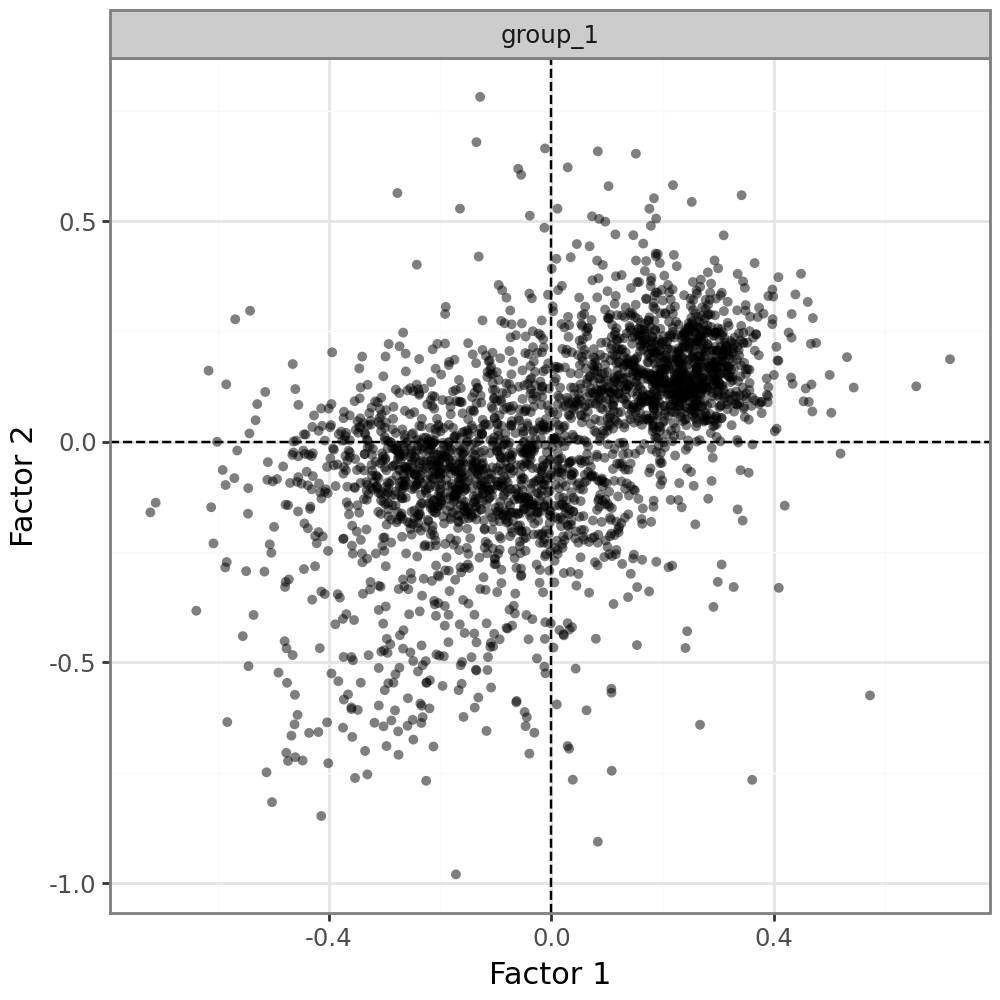

We can also plot factors agains each other. This may be useful to define clusters of cells with similar factor values.

mfl.pl.factors_scatter(model, 1, 2, alpha=0.5)

Of course, MOFA-FLEX does not and cannot provide all imaginable analysis functions. It thus provides methods to access the factor and weight values, such that they can be used for manual analysis.

weights = model.get_weights()
factors = model.get_factors()

weights["rna"]

	ISG15	C1orf159	AL390719.3	TNFRSF18	TNFRSF4	PLCH2	MEGF6	AL365255.1	NPHP4	ACOT7	...	SPANXA2-OT1	AFF2	LINC00893	TMEM185A	LINC00894	PDZD4	SLC10A3	MTCP1	BRCC3	VBP1
Factor 1	-0.189376	-0.073787	-0.049348	0.035380	0.047967	-0.091178	-0.025529	-0.001774	0.113424	-0.148712	...	0.051964	-0.051119	0.001705	-0.005496	0.066848	-0.120905	0.086391	0.095509	0.274914	-0.091386
Factor 2	0.248409	0.102557	0.029819	0.152524	0.329639	-0.084845	0.073064	0.011662	0.051096	-0.057731	...	0.021905	0.038603	-0.069393	-0.020068	0.007216	-0.039692	0.062904	-0.104711	-0.215993	-0.125060
Factor 3	0.384845	-0.016436	-0.012052	-0.008531	-0.096441	0.020407	-0.150675	-0.048524	0.107885	-0.001884	...	-0.018592	-0.018152	0.035284	-0.175562	-0.021295	-0.021576	-0.067565	0.042839	0.085181	-0.055791
Factor 4	-0.016846	0.079865	0.046001	-0.558960	-0.572362	-0.144281	0.079722	-0.001279	0.103057	-0.087016	...	-0.000845	0.106108	0.020730	0.040423	0.029478	-0.107213	-0.051710	-0.014692	-0.044695	-0.092186
Factor 5	0.044211	0.129531	0.048840	0.229818	0.254385	0.001333	-0.081784	-0.005494	0.128608	-0.127923	...	0.029484	0.063783	-0.068990	-0.084985	-0.038371	0.116027	-0.022857	0.003913	0.005418	0.097961
Factor 6	-0.618853	0.012128	0.000998	0.137428	-0.043499	0.024533	0.022788	0.098064	-0.003297	0.041672	...	0.003277	0.039947	-0.060559	-0.013331	-0.037571	0.125552	0.036886	0.033270	0.039675	-0.211510
Factor 7	-0.442458	-0.101479	0.023583	0.021900	-0.025400	0.025268	-0.010805	-0.070370	-0.009152	-0.072582	...	0.032161	0.029726	0.015703	0.066717	-0.074298	-0.045682	0.017101	0.057714	-0.067829	0.175016
Factor 8	-0.055849	-0.068473	-0.042274	-0.050389	0.022151	-0.007174	0.024929	0.053787	-0.038904	0.020470	...	-0.038868	0.070869	-0.020878	0.079161	0.106335	-0.110068	-0.017513	0.049150	0.053820	-0.074065
Factor 9	0.847176	-0.144409	-0.082529	-0.125883	-0.021260	0.076999	0.086520	-0.044230	0.058836	0.120648	...	0.062515	0.004620	0.024979	0.045098	0.093637	0.085579	0.036728	-0.073276	-0.049939	-0.045169
Factor 10	0.260658	-0.018242	-0.048973	0.095457	-0.118889	0.128337	0.097937	0.013919	-0.051902	-0.046666	...	-0.019701	0.003984	-0.087492	0.046393	0.042418	-0.085316	0.038125	0.041113	0.045989	0.145492
Factor 11	-0.339596	0.035699	0.036781	-0.028903	-0.294902	0.033796	0.027752	-0.074360	0.002477	0.172775	...	-0.018687	0.141971	0.082159	0.021479	0.253133	-0.051885	-0.067781	-0.044705	0.005597	0.129108
Factor 12	0.140051	-0.023272	0.053881	-0.398822	-0.443519	-0.104664	0.022436	0.003456	0.010753	-0.123234	...	0.005473	0.047491	-0.030022	0.053311	-0.077040	0.153919	-0.029247	-0.129744	-0.092596	-0.098910
Factor 13	0.008263	-0.002270	0.098201	0.249155	0.543481	-0.062938	0.084722	-0.030612	0.052744	0.031904	...	-0.021037	0.073529	-0.029792	-0.118077	-0.062912	-0.022290	-0.148696	-0.148372	-0.096425	0.122402
Factor 14	1.380962	-0.087727	0.009225	0.235166	-0.039743	0.009549	-0.131573	0.023868	0.013604	-0.046723	...	-0.036650	-0.089463	0.005698	0.111561	-0.090331	0.049375	0.033765	-0.003689	-0.055969	0.053556
Factor 15	-1.152911	0.025368	0.005462	-0.023505	-0.274491	0.015588	-0.015119	-0.011525	0.011900	-0.101080	...	-0.039308	-0.086269	0.002518	0.082119	-0.133889	-0.046957	-0.097321	-0.010911	-0.036072	-0.400827

15 rows × 3718 columns

weights["atac"]

	chr1:267561-268455	chr1:629484-630393	chr1:778284-779202	chr1:844149-845034	chr1:857873-858632	chr1:923392-924241	chr1:958865-959762	chr1:1012993-1013910	chr1:1040399-1041292	chr1:1068892-1069685	...	GL000205.2:67744-68642	GL000219.1:39937-40840	GL000219.1:44650-45512	GL000219.1:45733-46550	GL000219.1:90065-90960	GL000219.1:125017-125889	KI270721.1:2089-2980	KI270726.1:27153-28037	KI270726.1:41489-42329	KI270713.1:29578-30400
Factor 1	0.015588	-0.068973	-0.323210	-0.075846	-0.078673	-0.043594	-0.082744	-0.230949	-0.137500	-0.120305	...	0.192618	0.039591	-0.136961	-0.108797	0.024091	-0.132526	-0.083251	-0.106187	0.003338	-0.140618
Factor 2	0.010297	0.171070	-0.272004	-0.182100	-0.033910	0.060713	-0.279495	-0.237344	-0.373046	-0.010249	...	0.278677	-0.176570	-0.259601	-0.642847	-0.032023	-0.105531	-0.058108	-0.053535	-0.071863	0.093508
Factor 3	-0.028898	0.051319	0.071390	-0.293090	-0.084974	-0.074341	-0.122872	-0.012087	-0.311388	-0.116551	...	0.213033	-0.107144	-0.029083	-0.057040	-0.043446	0.101682	0.070688	-0.050273	0.063659	-0.128200
Factor 4	0.067406	-0.064552	-0.144720	0.222972	0.198841	-0.117017	-0.030485	0.141264	0.137078	0.002803	...	-0.195972	-0.159258	0.034300	-0.262307	-0.124259	-0.005265	0.026266	0.027857	-0.010228	0.033526
Factor 5	0.134998	-0.118389	-0.048504	-0.033692	-0.094288	-0.105451	-0.134580	0.170727	-0.105009	-0.052774	...	-0.299938	-0.023304	-0.075331	0.213807	0.079724	-0.047202	0.067408	-0.105169	-0.095975	-0.008091
Factor 6	-0.094902	0.175581	0.199167	0.130938	0.128411	-0.070910	0.290823	-0.085090	0.139106	0.375201	...	-0.055348	0.008064	0.035890	0.025920	-0.017034	-0.139985	-0.021245	0.011567	0.146342	0.039091
Factor 7	-0.029667	0.232662	0.137632	-0.034105	0.026049	0.141460	-0.023896	0.103624	0.080493	0.355293	...	0.093679	0.253191	0.091128	-0.129581	0.027496	0.098308	-0.037056	0.088649	0.149442	-0.027713
Factor 8	0.105609	0.116295	0.127468	0.013525	0.036117	0.050187	-0.022508	-0.186174	-0.188627	-0.149945	...	-0.042306	-0.212531	0.053144	-0.260661	-0.238006	0.011654	-0.002434	-0.004869	-0.002524	0.011428
Factor 9	-0.088714	-0.236125	-0.034857	-0.275669	-0.199103	-0.208306	-0.173522	-0.175142	-0.361846	-0.388860	...	-0.062702	0.381349	0.329235	0.350945	0.091241	0.032202	-0.146296	-0.041344	-0.130320	-0.230856
Factor 10	0.003886	0.182097	0.042181	0.142671	0.075899	0.056084	0.086588	0.131228	0.225935	0.243304	...	0.153632	-0.270489	-0.095530	-0.105563	-0.187800	0.022895	-0.096935	-0.006983	0.029871	0.032132
Factor 11	-0.040994	-0.144084	-0.171954	-0.104147	0.027021	-0.026749	-0.303967	-0.186920	-0.241965	-0.203547	...	0.040131	-0.203556	-0.029991	0.042943	-0.209069	0.003288	-0.004122	0.006341	-0.013852	-0.120541
Factor 12	0.057618	0.117719	-0.108942	-0.091153	-0.023501	-0.011017	-0.033363	-0.139303	-0.102051	0.049994	...	0.412098	0.178078	0.142233	0.369375	0.073314	0.032400	0.120729	-0.055238	-0.183104	-0.080130
Factor 13	-0.156427	-0.054138	0.163906	0.073237	0.101645	0.183813	0.142219	0.094903	-0.288277	0.467657	...	0.027979	0.187276	-0.064292	-0.197571	0.028351	-0.001363	0.196256	0.097051	-0.038267	-0.153199
Factor 14	-0.070237	-0.079855	-0.091271	-0.036744	-0.044658	0.030472	-0.194341	0.209160	-0.318201	-0.377731	...	-0.011044	-0.237870	-0.114371	-0.183502	-0.053019	-0.095012	-0.068152	-0.062755	-0.023839	0.033481
Factor 15	-0.034799	0.015444	0.088015	0.141185	-0.030220	0.149655	0.039116	-0.162965	-0.071959	-0.050679	...	-0.063380	-0.320987	-0.064431	-0.133580	-0.006968	-0.118564	0.050569	0.075011	0.030030	-0.033265

15 rows × 20985 columns

factors["group_1"]

	Factor 1	Factor 2	Factor 3	Factor 4	Factor 5	Factor 6	Factor 7	Factor 8	Factor 9	Factor 10	Factor 11	Factor 12	Factor 13	Factor 14	Factor 15
AAACAGCCAAATATCC-1	-0.711329	-0.138095	-0.117859	-0.758095	0.488893	0.365223	-0.317043	-0.150380	0.091710	0.352163	0.347944	0.072361	-0.308070	0.369941	-0.224889
AAACAGCCAGGAACTG-1	0.200870	0.226601	0.103635	0.109878	-0.087861	-0.279875	-0.261920	0.095023	0.175019	-0.056246	0.125093	0.110894	0.007098	0.348968	-0.031934
AAACAGCCAGGCTTCG-1	0.386977	0.143410	0.149321	0.150196	0.409791	-0.082680	-0.210290	0.268729	0.126539	-0.305792	0.150471	0.006699	-0.195209	-0.029911	0.360625
AAACCAACACCTGCTC-1	0.076602	0.108646	0.310807	-0.504941	-0.660438	-0.048514	0.184567	0.005226	-0.126196	0.157478	0.201867	0.261932	0.003733	-0.281539	0.241265
AAACCAACAGATTCAT-1	-0.460528	-0.714788	-0.103196	-0.712085	0.181718	0.024262	-0.154573	0.017619	0.033718	0.131182	0.076497	0.016913	-0.226345	0.206774	0.051490
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
TGTTGTGCATTGTGTG-1	-0.124523	0.017649	-0.219138	0.317680	-0.174649	0.291931	0.288152	0.005809	0.000549	0.103788	0.006043	-0.046411	0.079992	0.115161	0.123362
TTCCCACAGGCGAATA-1	0.180360	0.090379	0.226677	0.074547	0.022169	-0.193567	-0.180897	0.119575	0.107953	-0.082141	0.144209	0.016051	-0.054936	0.239553	0.037676
TTGCTTAGTCCTTTAA-1	0.156793	0.047492	0.187003	0.003541	0.134676	0.015608	-0.149397	0.134034	0.051219	-0.063679	0.030517	0.004928	-0.028842	0.089295	0.124001
TTGTCCGGTGCATTAG-1	0.192446	0.149734	0.154785	0.046855	0.088373	-0.134648	-0.230934	0.164872	0.063290	-0.153682	0.181172	0.039701	-0.090489	0.129575	0.078037
TTTGTTGGTAGGTTTG-1	0.174301	0.196018	0.306593	-0.232571	-0.284522	0.040452	0.124159	-0.008937	-0.192886	0.019016	0.023248	0.296303	-0.117336	-0.118165	-0.064181

2695 rows × 15 columns
